Telemecanique altivar 66 & 65 i/o extension module

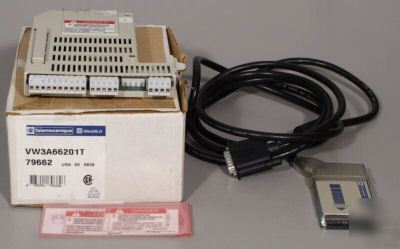

Telemecanique VW3A66201T I/O Extension Module for Altivar 66 / Altivar 56 Drive Controllers, Level 3 Configuration with a PCMCIA Serial Interface Card
Comes with a manual and what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Telemecanique and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
The unit is in like-new condition however we do not have the ability to test it.
The Module's Serial Number Tag Reads:
The PCMCIA Card's Serial Number Tag Reads:
* 6W9820848003 14907950511A04
Link to the PCMCIA Card Manual: VW3A66301 PCMCIA Card Manual
Altivar 66 and Altivar 56 adjustable frequency AC drive controllers can function as stand-alone drive controllers or as part of complex drive systems.
Altivar 66 Drive Controllers are:
* A family of 1 to 400 hp (2.2 to 250 kw), 460 V and 1 to 50 hp (2.2 to 37 kw), 230 V drive controllers
* Capable of controlling either constant or variable torque loads
* Designed to handle simple or complex applications
The I/O Extension Module provides additional and extended menu features on the drive controller.
The I/O Extension Module is an option board for the Altivar 66 and 56 drive controllers. It adds logic and analog inputs to the drive controller, expanding its features and I/O capabilities. The VW3A66201T is for 24 VDC Control.
The I/O Extension Module is equipped with digital, analog, and serial communication interfaces. Each I/O Extension Module Has:
* One current loop output (0-20 mA)
* One PCMCIA connector for addition of optional serial communications (ALTIVAR 66 only)
The communication card reference VW3-A66301 is designed for use with Altivar 66 speed controllers fitted with VW3-A66205, VW3-A66201Q or VW3-A66202Q communication interfaces.
It is designed to integrate these power switching components into modern control system architectures by enabling them to be connected to a multidrop industrial bus.
Data exchanges enable all functions of the Altivar 66 to be used:
* remote downloading of settings,
The VW3-A66301 communication card, in extended type 3 PCMCIA format, has a 3 m connection cable fitted with a 15-pin SUB-D connector.
This card manages the following communication protocols:
For More Pictures Please Click the Following:
* Picture 2 - Module Side View #1
* Picture 3 - Module Side View #2
* Picture 4 - Module Connections
* Picture 5 - PCMCIA Card, Front View
* Picture 6 - PCMCIA Card, Back View
* Picture 7 - PCMCIA Cable Connector
* Picture 8 - PCMCIA Serial Number Tag
* Picture 9 - I/O Module Serial Number Tag
