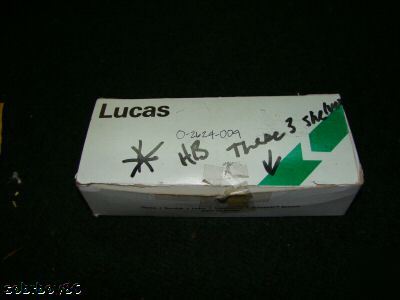

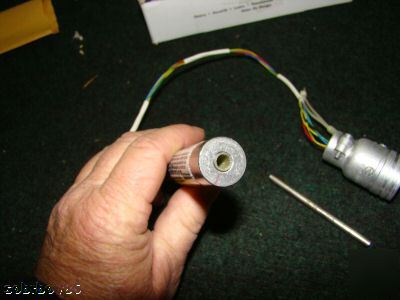

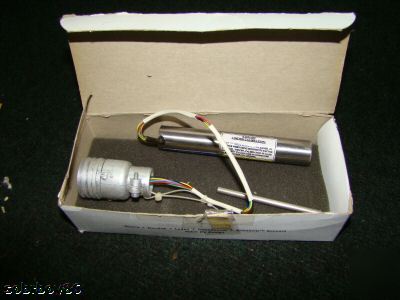

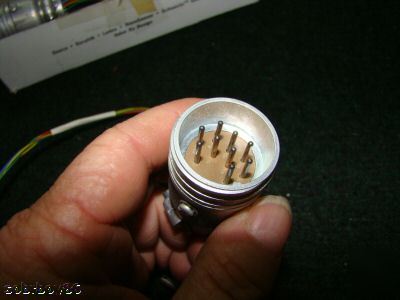

Lucas schaevitz linear differential transducer lvdt

Here is some info we found on the Schaevitz website on the type E-500 series, check with your dealer for accuracy.
of LVDTs is economical and satisfies numerous applications where LVDT performance and reliability are desired, but where budgets are limited. Linearity is 0.5% of full-range for all units except the E2000. The E series is particularly suitable for moderate operating temperatures. Its rugged construction will resist the shocks and vibrations encountered in most industrial applications. The E series is housed in magnetic stainless steel for protection against electromagnetic and electrostatic interference.
High density, glass-filled polymer
AISI 400 series stainless steel
E Series Nominal Sensitivity Impedance Phase
Model Linear Range Linearity mV out/V in Per Ohms Shift
Number inches mm (±% full range) 0.001 in mm Pri Sec Degrees
E 500 ±0.500 ±12.70 0.5 0.68 29 408 162 +6
