Solen fastcaps metalised polypropylene 0.56 uf/630V

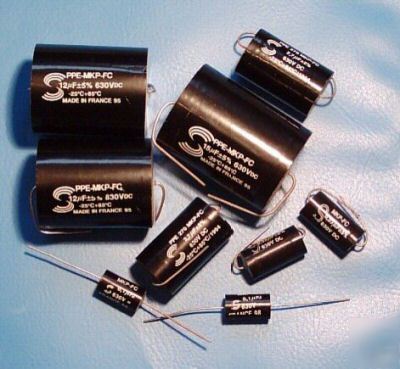

SOLEN Fast Capacitors 0.56 uF/630v
for dimensions click on link : http://www.solen.ca/caps/mkp3.htm
: Metallized Polypropylene Film Capacitor.
: High Purity Polypropylene Film.
: Round Tubular "Square Aspect Ratio" Type, Axial Leads.
: Black Plastic Tape Wrapped, Grey Epoxy Resin Sealed.
: Aluminium Metallized, Vacuum Deposited.
: Bifilar Extended Metallized Film.
: Non-Inductive, Zinc Thermal Arc Sprayed on Extended Film.
: Tinned Plated Oxygen Free Pure Copper.
: 0.01 ... 330 µF, E 24 series, ±5 %, typ. 2 % (see specifications for details)
: 2.2 er, non-polar dielectric.
: Extremely low.(see specifications for details)
: Less Than 12 nH with 6mm leads.
: Extremely low. (sees pecifications for details)
: More than 100,000 MegOhms @ 20°C.
: PA = 250Vdc/150 Vac, PB = 400Vdc/250Vac, PPE = 630Vdc/330Vac, PPM = 1000vdc
: PA = 4 µm, PB = 5 µm, PPE = 6 µm
: PA = 0.03 µm, PB = 0.04 µm, PPE = 0.02 µm
: PA = 1.5 - 3 Ohm / cm2, PB = 1 - 2 Ohm / cm2, PPE = 2 - 4 Ohm / cm2.
: 0.8, 1.0 , 1.2 , 1.5 mm pure copper. (see specifications for details)
Special Tubular "Square" Type Mechanical Construction.
High Conductivity Metallization.
Tin/Silver Soldered Lead Termination.
High Current Capacity.
High Frequency and Temperature Stability.
Excellent Long Term Electrical and Mechanical Reliability.
No Short Term and / or Long Term Signal Aberration.
Very Low Dielectric Absortion Factor.
Very Low Equivalent Series Resistance.
Very Low Inductance.
Very High Resonant Frequency.
Ultra Linear Impedance Characteristics.
Very Low Dissipation Factor.
Very High Insulation Resistance.
