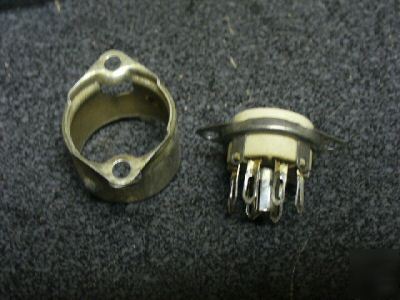

Socket,plug-in electronic components
CONTACT POSITION ARRANGEMENT STYLE - 700A MINIATURE
ACCOMMODATED CONTACT QUANTITY - 7
CONTACT MAXIMUM CURRENT RATING IN AMPS - 1.0
CONTACT MATERIAL - BERYLLIUM COPPER
CONTACT SURFACE TREATMENT - GOLD AND COPPER
BODY STYLE - 4B TOP MOUNT W/METAL SADDLE AND SHIELD BASE
OVERALL LENGTH - 1.125 INCHES MAXIMUM
OVERALL HEIGHT - 1.188 INCHES MAXIMUM
OVERALL WIDTH - 0.795 INCHES MINIMUM AND 0.805 INCHES MAXIMUM
PROJECTION LENGTH BELOW MOUNTING SURFACE - 0.547 INCHES MAXIMUM
TERMINAL TYPE AND QUANTITY - 7 TAB, SOLDER LUG
MOUNTING TYPE FOR WHICH DESIGNED - CHASSIS
MOUNTING HOLE STYLE - 8D ROUND, W/TWO MOUNTING HOLES
MOUNTING HOLE DIAMETER - 0.120 INCHES MINIMUM AND 0.130 INCHES MAXIMUM
BODY MOUNTING HOLE ACCOMMODATION DIAMETER - 0.620 INCHES MAXIMUM
DISTANCE BETWEEN MOUNTING FACILITY CENTERS - 0.870 INCHES MINIMUM AND 0.880 INCHES MAXIMUM
COMPONENT SHIELD MOUNTING METHOD - BEAD
FEATURES PROVIDED - CENTER SHIELD
TEST DATA DOCUMENT - 81349-MIL-S-12883 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-S-12883 GOVERNMENT SPECIFICATION
III SPECIFIC EQUIPMENT ACCOMMODATED - ELECTRON TUBE
III CONTACT MAXIMUM VOLTAGE IN VOLTS AND CURRENT TYPE - 500.0 AC AND 500.0 DC
III FABRICATION METHOD - MOLDED
III CONTACT RESISTANCE IN OHMS - 0.015
III TEMP RATING - 200.0 DEG CELSIUS
III SADDLE SURFACE TREATMENT - TIN
III BASE SHIELD MATERIAL - BRASS
III BASE SHIELD SURFACE TREATMENT - TIN
III CENTER SHIELD MATERIAL - BRASS
III CENTER SHIELD SURFACE TREATMENT - TIN
III BODY SURFACE TREATMENT - GLAZED
III PRECIOUS MATERIAL AND WEIGHT - 0.007 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILS12883-2
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M12883/02-01
