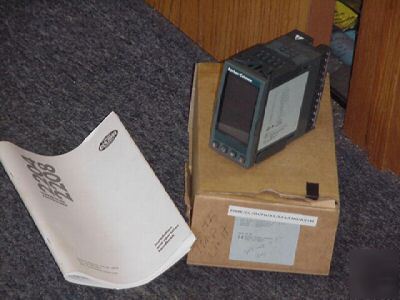

Eurotherm barber colman temperature controller 2208 e
General Purpose PID Temperature Controllers
-10mV to 80mV and 0 to 10Vdc (auto ranging)
0.25% of reading, ±1°C or ±1 LSD or whichever is the greater
<1µV for ± 100mV range, <0.2mV for 10Vdc range
User adjustable over the full display range
Automatic compensation typically >30 to 1 rejection of ambient temperature change
External references 0, 45 and 50°C
No error for up to 22 ohms in all 3 leads
-10 to 80mV, 0 to 20mA or 0 to 10Vdc (All configurable between limits)
Manual select, 2nd setpoint, remote setpoint select, internal hold, acknowledge alarms, lock keypad, reset, load current, standby
Min: 12V, 100mA dc. Max: 2A, 264Vac resistive
Min: 6V, 1mA dc. Max: 2A, 264Vac resistive
PDSIO mode 1: Logic heating with load failure alarm
PDSIO mode 2: Logic heating with load/SSR failure alarm and load current display
PDSIO mode 5: For use with external SSR and contactors not fitted with PDSIO input
Isolated, 0 to 20mA @ 12V (configurable between limits). 600. max load resistance
Process value, setpoint or error, mA or volts with external burden resistor
EIA232, EIA422, EIA485 at 1200, 2400, 4800, 9600 and 19,200 baud
Modbus® or Eurotherm Bisych or DeviceNet®
Setpoint input from master PDSIO controller. Holdback to master controller
