> New MAJOR1IT500VA insolating transformer 0.5KVA 120/240

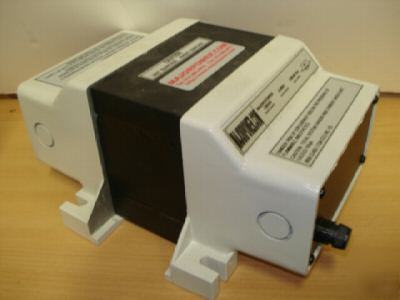

New MAJOR1IT500VA insolating transformer 0.5KVA 120/240
MAJORPOWER NOISE SUPPRESSING ISOLATION
now is only $488.88 due to Bailiff sale
Protected $ Ultimate reliability @ extreme environment applicable: dental, medical devices,
hi-tech installations, research laboraties, automation process
This is top of line EYT (Power Guard) model, quality made by XENTEK.
Final Clear out! Supper Investment ! Don’t miss out this supper deal
Reduced price due to Bailiff's request for fast sale $288.88
Major1IT Isolation Transformers
Major1IT Isolation Transformer is a reliable source of
clean, conditioned power designed to protect sensitive equipment
from all types of power disturbances and electrical noise.
Major1IT Isolation Transformer is ideal for use in industrial,
telecom, utility, medical, and military applications.
Choice of Common Mode Noise Reduction
Reduces common mode and normal mode noise
Prevents back feeding of noise from line to load
Low Leakage Current (full safe)
Allows use of products in hospitals and medical
0.125, 0.25, 0.5, 0.75, 1, 1.8, 2.4, 2.5, 5, 7.5, 10, 15 and 20 kVA, single Ø
4% or less from no load to full load
Highly shielded with REI/EMI filtering incorporated into design
47 Hz minimum for 50 Hz models; 57 Hz minimum for 60 Hz models
100 mH minimum from winding to core measured at 500 Vdc
Noise Suppression Performancce
Meets ANSI/IEEE standard C62.41, 1991 (IEEE, 587 category A and B),
K-13 (other ratings are available upon request)
Complies with NEMA requirements
Operating 0°C to 40°C; Storage 0°C to 85°C
10,000 ft maximum (full load power rating should be decreased approx 3.3%
per 1000 ft of altitude about 10,000 ft)
<0.1 gauss at a distance of 3 ft
0.125 - 1 kVA, 120 V 6' line cord with NEMA 5-15P plug and one NEMA 5-15R duplex receptacle
1.8 kVA, 120 V 6' line cord with NEMA L5-20P twist-lock plug and one NEMA 5-20R duplex
2.4 kVA, 120 V 6' line cord with NEMA L5-30P twist-lock plug and one NEMA 5-20R duplex
0.125 - 2.4 kVA, 230 V 6' line cord with European plug and side ground duplex receptacle
UL544 and UL1012, UL1561 and cUL (Canadian standard C22.2 No 125) (60 Hz
models)(60 Hz models); CE mark (50 Hz models)
Complies with Part 15 Subpart J of FCC rules for a Class A computing device
±3% or less from no load to full load at unity power factor
1. Inspection & Local Pick up available @ our showroom @ WA 98281, or BC, Canada V6X2P4
6. We absorb all taxes for our online purchases.
