New brookfield TT200 inline viscometer w/ NEMA7
NEW BROOKFIELD VISCOMETER IN EXCELLENT CONDITION.
THIS INSTRUMENT RETAILS FOR ALMOST $20,000 (I HAVE QUOTE IF NEEDED), BUT I'M OFFERING IT AT NEARLY A QUARTER OF THAT PRICE. MY
COMPANY BOUGHT TWO UNITS, BUT THE FIRST ONE WAS DESTROYED DUE TO SERVICE BEING INCOMPATIBLE. I'M NOT INSTALLING THIS ONE JUST TO
HAVE THE SAME THING HAPPEN TO IT. I'M JUST TRYING TO RECOUP SOME OF THE COST. I HAVE TWO MANUALS AND THE CALIBRATION WEIGHTS AS
WEIGHTS OF: 13, 20, AND 36 POUNDS. AS A BONUS I CAN INCLUDE A NEW KEP LOOP POWERED INDICATOR IN XP HOUSING.

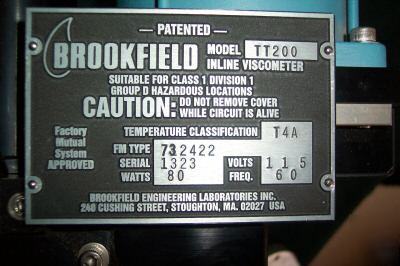

Brookfield Process Viscometer, MODEL TT200, meeting the following specifications
Viscosity range: 0 to 5000 cP HIGH range and 0 to 1000 cP LOW range at processing temperature
Temperature range: 300°F. (149°C) maximum
Pressure range: 200 psig (13.8 bar) maximum
Instrument signal output: 4-20 mA (600 Ohms maximum)
Power requirement: 115 volt 60 Hz/100w
Chamber: 4" 150# flange with flush connection
Enclosure (remote): NEMA 7 (explosion-proof) Factory Mutual - Class I, Division I, Group D T4A (motor
Material of construction: 316 s/s wetted parts except for torsion element which is ni-span (902 alloy), teflon-coated
Sensing cable length: 25 feet (7.6m) standard, from sensor to electronics enclosure
Pressure Interlock: TT100-483Y-7 Pressure interlock to prevent operation when the seal fluid pressure is
