Power lift for desks, work stations, podiums, lecterns

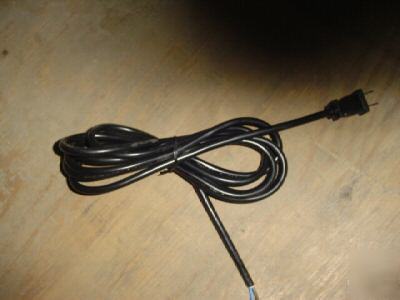

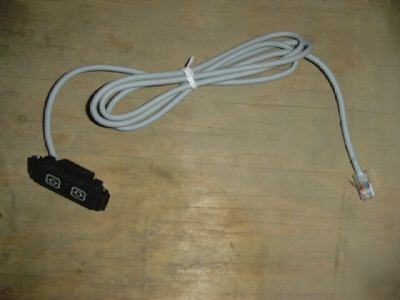

Complete with lift unit, power cord and 2-way switch.
Input power is 120 volt 1 phase
For use in adjustable Desks, Work Stations, Podiums, Lecterns, and/or table heights.
We have over 50 units available. They are all new, with a black finish.
Overstock from a major furniture manufacture.
Made by SKF Magnetic Corporation, in Germany
Magnetic Electrmotoren GmbH D-79689 Maulburg
120v 50/60Hz max 1.8A v=17mm/s F=1500N push (Lift capacity 337 lbs)

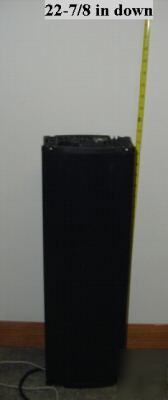

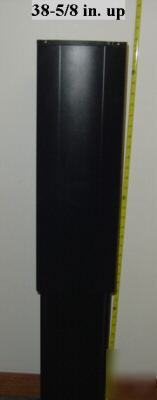

Stroke 400mm (approximately 16 in)

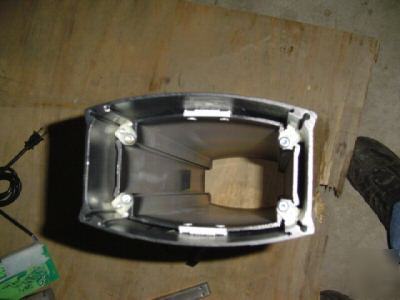

The lifting columns consist of a two-section aluminum extrusion with built in guides that extends and retracts with the help of an integrated linear drive. The actuator is equipped with a 24 volt DC motor with worm gear that translates the rotary motion with the help of a spindle nut system into a linear movement. Built in stops to prevent over or under movement of slides. The linear drive is self-locking in any position. There are mounting holes on top and bottom in all 4 corners. Base of unit is slotted so the cords can exit the side of the unit when it is mounted to a base.

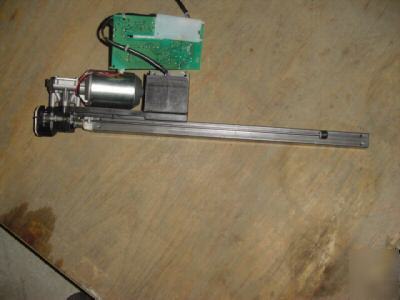

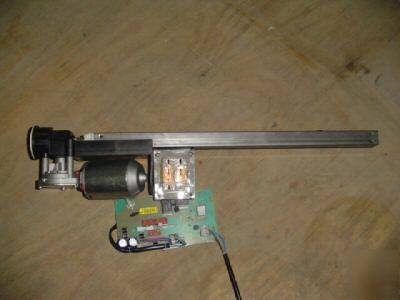

See pictures of the unit disassembled. This will show you more about its construction and components.
Each unit with cord and control weighs 21 lbs.
New replacement cost today is close to $500.00 each, and are available from SKF
