Agilent 4156B semicon parameter analyzer reduced price

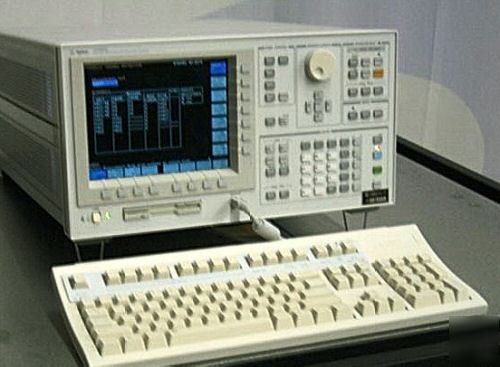

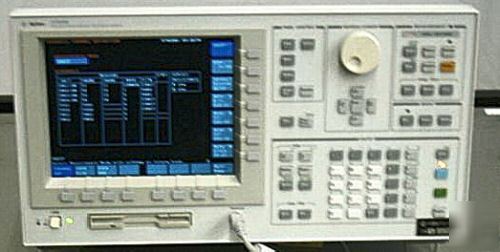

HP / Agilent 4156B / 4156B-36H Semiconductor Parameter Analyzer
Agilent spec sheet 4156B http://cp.literature.agilent.com/litweb/pdf/5968-6681E.pdf

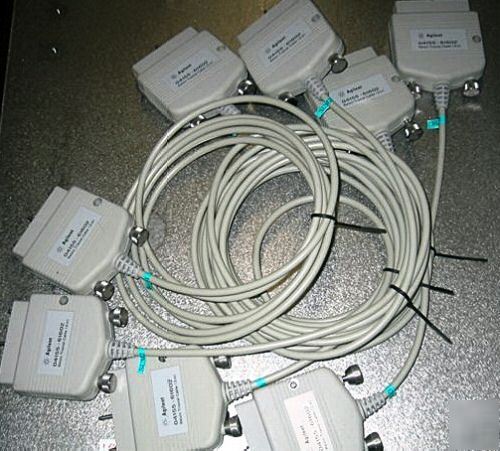

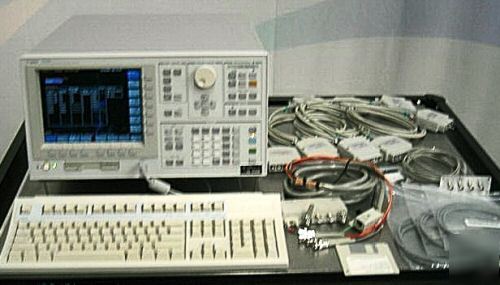

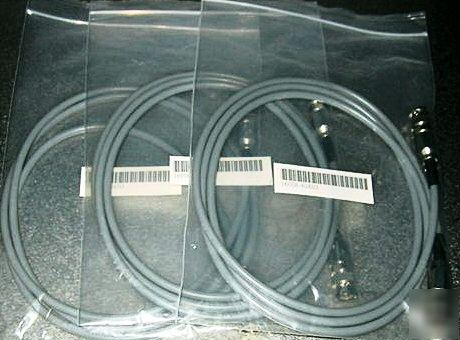

The tool was set up for CV/IV measurements and besides the 4156B and the 12000 series prober it includes an Agilent 4284A /001/006, E5250A Low-leakage Switch Mainframe with E5252A 10x12 Matrix switch and a Temptronics TPO3000A-2300 with a Triaxial chuck along with all the accessories to immediately put the system back into service as it was original configured by the OEM. A complete list of serial numbers and accessories is available upon request. I am willing to sell the 4156B by itself or with the associated items I have available. .
The Agilent E5250A low-leakage switch mainframe expands a single measurement station, such as the Agilent 4155B or 4156B, to an automated measurement system. Plug-in modules can be configured either as a cross-point matrix for general parametric measurements or as a multiplexer for long-term reliability measurements. This unit has one E5252A 10x12 Matrix switch installed and has 3 more available slots for expansion. Besides the 10x12 matrix switch Agilent offers a E5255A 24 (8 x 3) Channel Multiplexer Card and up-to 4 E5250A mainframes can be ganged toghther.
Spec sheet E5250A http://www.home.agilent.com/agilent/product.jspx?cc=US&lc=eng&nid=-536900426.536883163&pageMode=PL
Spec Sheet 4284A http://www.home.agilent.com/agilent/product.jspx?cc=US&lc=eng&ckey=1000000874:epsg:pro&nid=-536902494.536880951.00&id=1000000874:epsg:pro
