LCD size：53×29 mm
Product size：180×87×50 mm
Product Net weight：357g
Inductance：200uH: ±3.0％
2mH/20mH /200mH：±1.5％
200H: ±5.0％
Easy and correct readout
high measuring accuracy
Measurements are possible even under a strong magnetic field
LSI-circuit provides high reliability and durability
LCD display for low power consumption and clear readout even in bright ambient light conditions
In-line pushbuttons allow one hand operation
Light-weight and compact construction for easy operation
Data hold
Full overload protection
Low battery display
Backlight
Spotlight (can be used as flashlight)
Battery：1.5V AA ×3（4.5V）
Max display：1999
Over-range: Display shows "1";
Sampling rate: 3 times/second;
Operating temp: 0C to 40C, humidity<= 80%
Specification: |
|
Range |
Accuracy |
Resolution |
Inductance |
200uH |
0.1uH |
±3.0％ |
2mH |
1uH |
±1.5％ |
20mH |
10uH |
200mH |
0.1mH |
2H |
1mH |
±3.0％ |
20H |
10mH |
200H |
0.1H |
±5.0％ |
The package includes:

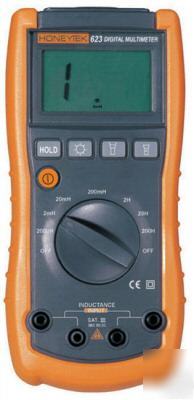

1) ATI-623 Inductor Meter;
2) Test alligator clips (red and black);
3) Three 1.5V AA type Batteries; 4) English operation manual.
