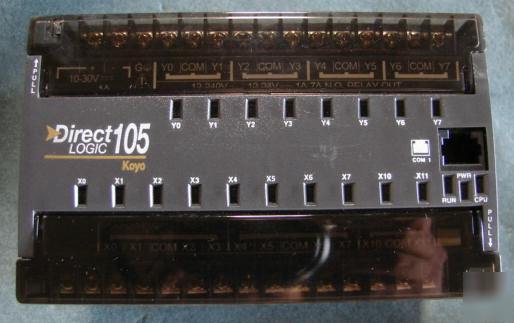

Direct 105 logic F1-130DR-d 10 dc input/8 relay output
Direct 105 Logic F1-130DR-D 10 DC INPUT/8 RELAY OUTPUT
Good Condition, Working, Direct 105 Logic F1-130DR-D 10 DC INPUT/8 RELAY OUTPUT 10-30VDC P/S No Serial Number
DL105 CPU (requires 12-24 VDC power), 10 DC in / 8 relay out, 12/24 VDC power supply. 2.4K words total (2048 words ladder - EEPROM, 384 words V-memory) RLL/RLLPLUS programming, built-in RS232C programming port. Inputs: 10 DC inputs, 12-24 VDC current sinking/sourcing, 3 isolated commons. First 4 inputs are configurable in one of several high-speed I/O features such as 5kHz counter input, pulse catch input, or interrupt input. Outputs: 8 relay outputs, 12-30 VDC, 12-250 VAC, 7A/pt. max. or 30-150 VDC, 0.5A resistive/pt. max., 4 isolated commons
USA and following regions : Canada, Mexico
