> M30802SGP mitsubishi QFP144 smd chip microcomputer

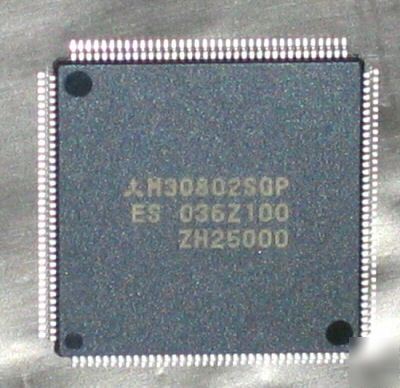

M30802SGP mitsubishi QFP144 smd chip microcomputer
The M16C/80 (144-pin version) group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 144-pin plastic molded QFP.
These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 16M bytes of address space, they are capable of executing instructions at high speed.
They also feature a built-in multiplier and DMAC, making them ideal for controlling office, communications, industrial equipment, and other high-speed processing applications.
The M16C/80 (144-pin version) group includes a wide range of products with different internal memory types and sizes and various package types.
• Memory capacity..................................ROM (See ROM expansion figure.)
• Shortest instruction execution time ......50ns (f(XIN)=20MHz)
• Supply voltage ..................................... 4.2 to 5.5V (f(XIN)=20MHz) Mask ROM and flash memory version
2.7 to 5.5V (f(XIN)=10MHz) Mask ROM and flash memory version
• Low power consumption ......................45mA (M30802MC-XXXGP)
• Interrupts .............................................. 29 internal and 8 external interrupt sources, 5 software
interrupt sources; 7 levels (including key input interrupt)
• Multifunction 16-bit timer ...................... 5 output timers + 6 input timers
• Serial I/O ..............................................5 channels for UART or clock synchronous
• DMAC ..................................................4 channels (trigger: 31 sources)
• DRAMC................................................Used for EDO, FP, CAS before RAS refresh, self-refresh
• A-D converter.......................................10 bits X 8 channels (Expandable up to 10 channels)
• D-A converter....................................... 8 bits X 2 channels
• CRC calculation circuit ......................... 1 circuit
• X-Y converter ....................................... 1 circuit
• Watchdog timer.................................... 1 line
• Programmable I/O ...............................123 lines
• Input port ..............................................
1 line (P85 shared with NMI pin)
• Memory expansion ..............................Available (16M bytes)
• Chip select output ................................ 4 lines
• Clock generating circuit ....................... 2 built-in clock generation circuits
Audio, cameras, office equipment, communications equipment, portable equipment, etc.
DATASHEET AVAILIBLE ON REQUEST
