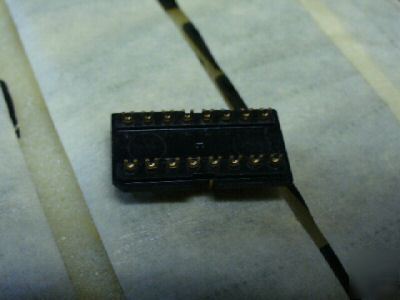

Connector,plug,electrical

BODY STYLE - 28A STRAIGHT SHAPE
OVERALL LENGTH - 0.775 INCHES MINIMUM AND 0.795 INCHES MAXIMUM
OVERALL HEIGHT - 0.341 INCHES NOMINAL
OVERALL WIDTH - 0.490 INCHES NOMINAL
POLARIZATION METHOD - MATING END
CONTACT POSITION ARRANGEMENT STYLE - ASBW 16 SINGLE MATING END
INCLUDED CONTACT QUANTITY - 16 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - HERMAPHRODITE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - TAB, SOLDER LUG SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
