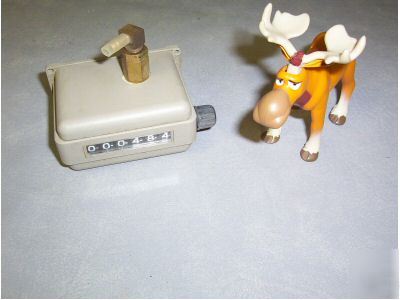

Veeder root 703006-003 pneumatic counter B86
E-BAY IS OUR LIVING - WE TAKE IT SERIOUSLY!
For specialized applications . . . operates by counting pulses of AIR no mechanical or electrical connections.
Although its rugged diecast enclosure design appears similar to our general purpose electrical- and mechanical-drive totalizers, the Series 7030 is unique because it counts pneumatic impulses. It is ideal where safety or environmental constraints make it difficult to use other counters - or where it s just more convenient to obtain an air pressure signal, than to supply a voltage source or mechanical linkage.
* Sturdy, industrial duty construction
* 6 figures - counts to 999999 with rollover to zero
* High contrast white-on-black numerals
* Requires no electricity or mechanical coupling
* Operates reliably from air sources of 40 to 150 psi
* Smooth acting rotary reset mechanism
* Pneumatic drive protected by internal exhaust filter
* Count speed to 1000 counts per minute
* Popular, general purpose base mount configuration
Series 7030 is rated for speeds to 1000 counts per minute (dependent on air pressure), and engineered to deliver a long service life. It is easy to install, by base mount attachment to machine frames, or many other surfaces.
* Speed: 250 to 1000 cpm depending on applied operating air pressure; see Speed/Operating Pressure
* Figure Size: 0.180" (4.6 mm) high
* Figure Color: White on black
* Operating Temperature: 0° to +131°F (-18° to +55°C)
* Construction: Case: Zamak; Wheels and Pinions: Acetal resin; Connection Fitting: Brass
