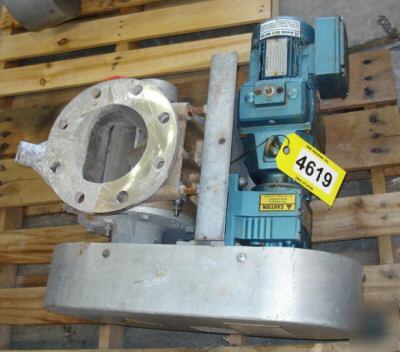

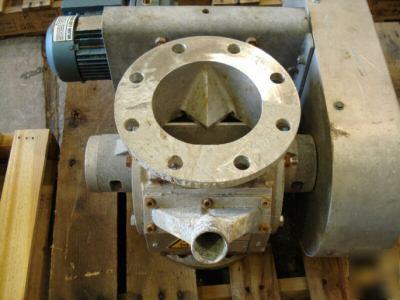

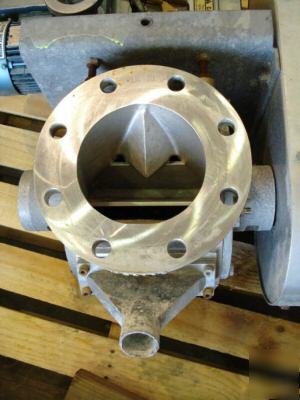

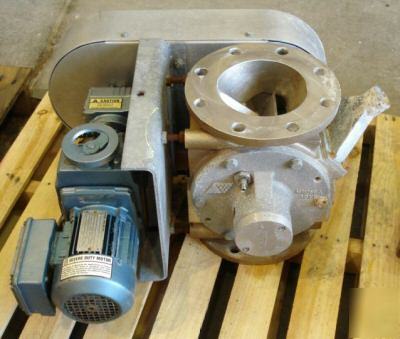

6" dia waeschle ss ZVB200.1-4.5-ss rotary valve (4619)

TYPE ZVB200.1-4.5-SS. S/N-94280-10.
MANUFACTURERS ITEM NUMBER RV-2615.
MAXIMUM WORKING TEMPERATURE 80 DEGREES C. MAXIMUM WORKING PRESSURE 1.5 BAR.
VALVE IS CAST STAINLESS STEEL WITH PELLET ADAPTOR.
FIXED TIP 8 POCKET CLOSED END ROTOR DESIGN WITH PRESSURE VENT ADAPTOR. PURGED PACKING GLAND.
EURODRIVE VARIABLE SPEED MOTOR AND GEAR REDUCER.
MOTOR IS 0.5 HP, 1700 RPM, 1.15 SERVICE FACTOR, 230/460 VOLT.
GEAR REDUCER IS VARIABLE SPEED SEW-EURO DRIVE WITH 68.47 RATIO.
VALVE IS 14.25” HIGH. FLANGE O.D. IS 11 1/8”, I.D. IS 6.5” WITH 8 BOLT PATTERN.
WE HAVE TWO OF THESE UNITS IN STOCK
BOTH VALVES ARE IN VERY GOOD CONDITION
