Beckhoff AM227L brushless synchronous servomotor
Brushless Synchronous Servomotor
According to our research the AM2000 series of brushless synchronous servomotors are of outstanding quality; they are highly dynamic, the rotors have low moments of inertia, they have excellent rotational characteristics and impressive overload capacity. The synchronous servomotors, in connection with digital Servo Drives from the AX2000/AX2500 series, are excellently suited to positioning tasks that make high demands on dynamics and stability.
(See our other listing for an AX2003-AS)
high dynamic performance caused by neodymium magnets
flange dimensions meet IEC standard, fit j6, accuracy according to DIN 42955,
vibration class N according to DIN ISO 2373
insulation material class F according to DIN 57530
style IM B5 according to DIN 42950
shaft end without keyway to DIN 748
shaft bush to IP 64, optionally with shaft sealing ring to IP 65
nominal mains voltage 400/460 V
long service life through brushless technology
optional single-turn or multi-turn absolute encoder
This type, model AM227L-0000 has the following specs:
Rated speed at rated supply voltage

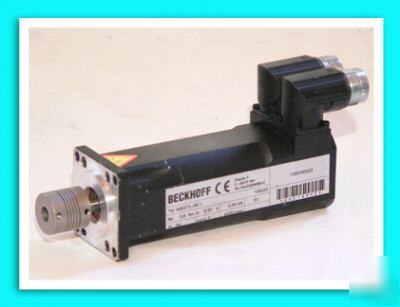

It comes as pictured we have no means to test it. Hope someone can use it!
