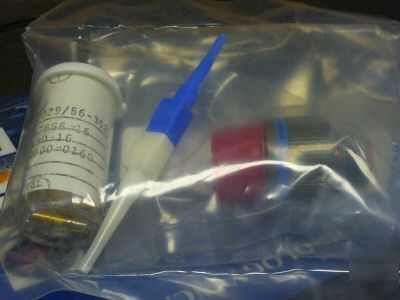

Connector,plug,electrical
BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 38.9 MILLIMETERS MAXIMUM
OVERALL DIAMETER - 31.0 MILLIMETERS MAXIMUM
THREAD PITCH IN MILLIMETERS - 1.00
CONNECTOR LOCKING METHOD - DETENT
THREADED DEVICE TYPE - BACK SHELL
THREAD SERIES DESIGNATOR - ISO S
NOMINAL THREAD SIZE - 18.0 MILLIMETERS
THREAD TOLERANCE CLASS - 6G EXTERNAL
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - BYAJ 16-45 SINGLE MATING END
INCLUDED CONTACT QUANTITY - 4 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF
TEST DATA DOCUMENT - 81349-DOD-C-38999 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-DOD-C-38999/46 GOVERNMENT SPECIFICATION
III OPERATING TEMP RATING - 65.0 DEG CELSIUS MINIMUM AND 175.0 DEG CELSIUS MAXIMUM
III PRECIOUS MATERIAL AND WEIGHT - 0.020 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
(NON-CORE DATA) FURNISHED ITEMS - PREFORMED PACKING
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - DOD-C-38999/46
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - D38999/46WC4SN
