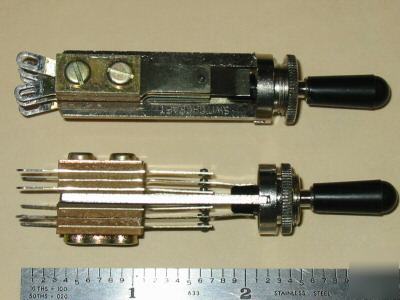

Switchcraft series 3000 dpdt lever switch - p/n 30312L
Series 3000 Momentary DPDT Lever Switch with Silver Contacts.
Frame: Copper alloy, plated.
Bushing and Shaft: Copper alloy, plated.
Contact Ratings: Fine silver contacts rated at 3A, 300W maximum AC non-inductive load standard.
Mounting Hardware: Knurled copper alloy locknut, plated (T10711) supplied
Insulation: Rigid plastic spacers with plastic tubing through stack. Rigid plastic and/or thermoplastic lifters. Thermoplastic cam on actuator end.
Leakage Resistance: 1,000 MegOhms or greater.
Dielectric Strength: 250V DC.
Knob: Black molded thermoplastic.
