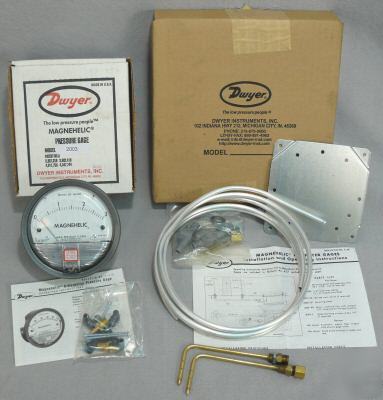

Dwyer magnehelic pressure gage + a-605 air filter pkg
Dwyer Model 2003 Magnehelic Differential Pressure Gage:
* Dimensions: 4-3/4" diameter x 2-3/16" deep
* Weight: 1 lb. 2 oz. (510 g)
* Finished: Baked dark gray enamel
* Connections: 1/8" female NPT high and low pressure taps, duplicated, one pair side and one pair back
* Accuracy: Plus or minus 2% of full scale, at 70 degrees F (21.1 degrees C)
* Pressure Rating: 15 PSI (1.03 bar)
* Ambient Temperature Range: 20 degrees to 140 degrees F (-7 to 60 degrees C)
* Standard Gage Accessories: Two 1/8" male NPT plugs for duplicate pressure taps, two 1/8" male NPT pipe thread to rubber tubing adapters, and three flush mounting adapters with screws
* Includes Installation, Operating, and Maintenance Instructions
Dwyer A-605 Air Filter Accessory Package:
* Adapts any standard Magnehelic® gage for use as an air filter gage
* Package includes aluminum surface mounting bracket with screws, two 5 ft. lengths of 1/4" aluminum tubing, two static pressure tips and two molded plastic vent valves, integral compression fittings on both tips and valves
* Installation and Operating Instructions included
* Sorry, due to too many past problems, we are unable to accept personal checks.
