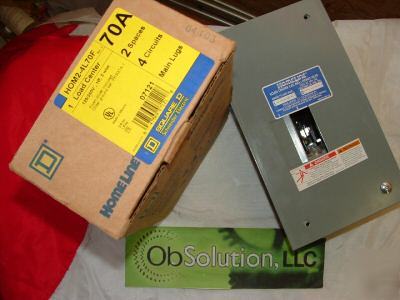

Square d HOM2-4L70F 70A load center 2 spaces 4 circuits
Manufacturer Part Number: HOM24L70F
Circuit Configuration: 1 PHASE 3 WIRE
Interrupting Rating: 10000 AMPERE
Main Wire Size: 12 TO 3 AWG (ALUMINUM), 14 TO 4 AWG (COPPER)
Size: 4.81 INCH W X 3.19 INCH D X 9.3 INCH H
Classification: Loadcenter Complete
MAIN LUG; 120/240 VAC; 70 AMPERE; 4 MAXIMUM CIRCUIT(S); 2 MAXIMUM SPACE(S); INTERRUPTING RATING 10000 AMPERE; MAIN WIRE SIZE 12 TO 3 AWG (ALUMINUM), 14 TO 4 AWG (COPPER); INDOOR ENCLOSURE; FLUSH COVER; ENCLOSURE SIZE DESIGNATION 2; SIZE 4.81 INCH W X 3.19 INCH D X 9.3 INCH H; APPROVAL UL; HOMELINE[R] BRAND
