13.56MHZ rfid reader module with c source&doc & antenna
(directly from RFID OEM Company)
13.56Mhz RFID Reader development module kit with C source code & document
This is ideal for the electronic hobbyist or Small Consulting Company wishing to rush into the HOTTEST RFID field.
1. High frequency 13.56Mhz RFID Reader Module board
(Not out-dated Low-frequency (125kHz) , ours is High-frequency, state of the art RFID technology)
size: 58mm X 34.5mm ( embedded Antenna) or 41.5mm X 25.cmm ( without Antenna)
2. Firmware for RFID ISO standard and Philips Mifare Tag/Card ( Already in the chip in board)
3. Library source and demo source code in Kerl C,
4. All elec. documents for the development.
5. Antenna: embedded antenna, so that you needn't to pay extra 40usd+ for antenna.
1. Low power dissipation with single power supply (5V DC);
2. RS232 / USB interface (option item)
3. Built-in bi-color LED and buzzer pin
RFID Sticker Card Specification:
2. Sticker shape can stick to any shapes.
RFID reader wires Com Port (DB9) from PC
Pin2 (RS232 RxD) - Pin 2 (RS232 TxD)
Pin3 (RS232 TxD) -Pin 3(RS232 RxD)
Pin4 (Ground) - Pin 5 (Ground)

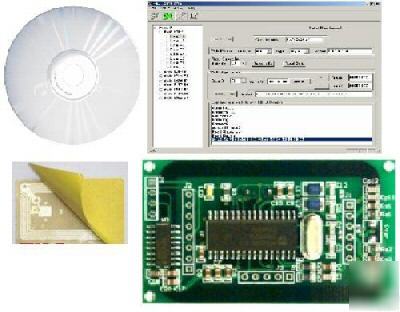

1. 13.56Mhz RFID reader / writer module – 1 pc
2. Mifare MF1 ISO14443 card – 1 pcs
3. CD-ROM: Demo program show how to read & write the data into the tag, and Source Code.
4. User Manual: User manual, and development document.
additional Mifare MF1 R/W ISO14443 Sticker Card- (USD$0.99 /pc)
* * Wholesale or OEM are welcome * * ****@rfidgeek.com
more information, please check out
International: plus 17USD, EMS
