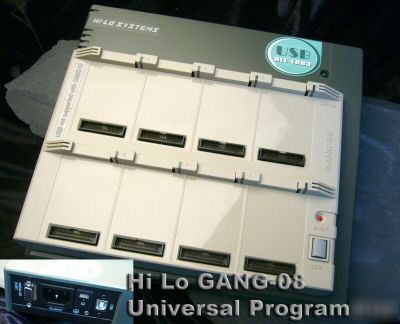

Hi lo gang-08 universal programmer flash memory epprom
The Complete FLASH/SERIAL/PARALLEL/EPPROM/ROM gang-08 Programming High speed power house!!!
8 x ZIF/DIP32 module, for standard DIP type EPPROM, ROM etc.
8 x TSOP48 module, for 28FXX(B5/CV, B3/C3) ST 29 XXX, Parallel FLASH MEMORY etc.
8 x SO8 module, for 93C, 24C, 25C Serial EPPROM etc.
The 8 at a time programming speed will get you program large memory size flash in production rate. All socket is japanese high quality, durable socket, reliable contact.
Our gang programmers connect to your PC via parallel port, or high speed serial port depending on model. Our control software runs on your desktop or laptop PC under Windows 98 / ME / 2000 / XP.
The ALL-GANG is not just a dedicated EPROM/FLASH programmer. It can be expanded to support microcontrollers, Serial PROM, WSI PSD peripherals, 16V8/20V8/22V10 and other PLD/GAL devices, and much more by using our interchangeable socket heads. The ALL-GANG socket HEADs let you support devices in nearly any package and devices with nearly any pin count.
We have over 8 year of experience designing gang programming systems for production environments. We have an installed base of over 20,000 gang programmers worldwide in use at some of the largest and most respected companies in the computer and embedded systems industry. Close relations with all major IC manufacturers keep our engineers well informed of all of the latest programming algorithm releases. Our company's programming algorithms have been tested and approved by leading IC manufacturers worldwide.
Our dedicated high speed CPU and our new surface mount SIMM module pin driver circuits combine to provide extremely accurate programming waveforms, high speed, high reliability, and a compact form factor compared to traditional gang programmers. The ALL-GANG pin drivers are fully programmable to support programming and testing of standard and low voltage devices. Built in protection circuits guard against over current and reverse insertion errors. The ALL-GANG meets CE requirements and is approved by TUV. Every ALL-GANG is backed by a 1 year hardware warranty.
* Up to 8 27C256 can be programmed and verified in just 7 seconds.
* Up to 8 28F010 FLASH can be programmed and verified in just 15 seconds.
* Up to 8 Intel or AMD 28F020 FLASH can be programmed and verified in under 30 seconds (ALL-11P2 and up).
* Up to 8 SGS Thomson 29F040 FLASH can be programmed and verified in under 1 minute (ALL-11P2 and up).
The ALL-GANG's Windows interface makes programming simple. Choose a device manufacturer and device type from a menu. Read in a file from a master device or lead a file from the PC. Click on the "Blank Check" button to check if the device is blank, click the "Program" button to program the device, or click the "Auto" button to use the Auto function. The Auto functions displays all available functions to perform on the device (i.e. blank check, program, verify, program security, protect/unprotect sectors, etc.). Simply check off the operations you want to perform. After all desired operations are selected the programmer can be operated by a single external key on the programmer to initiate the operations. LED's next to each socket indicate that all operations were performed OK on the given device. Download the latest control software to discover just how easy to use the interface is. (Please ignore error messages due to no programmer being attached).
ALL-GANG is Backed by Unmatched Support
Our engineering and support staff is standing by to answer technical support questions, assist you in purchasing, or to add support for new device types. New devices are added daily to keep up with all of your programming requirements. Software updates are available on our web site or by email, free of charge.
* Includes high speed CPU and 1Mbit memory buffer standard.
* High speed and compact pin driver circuits to support programming and testing of standard and low voltage IC. High speed serial port interface (up to 115K baud) works on (COM1, COM2, COM3, or COM4) in addition to a parallel port to program large chips at over twice the speed.
* Connects to ECP/EPP enhanced parallel port - ALL-GANG-08P2 / ALL-GANG08P3 only
* Connects to high speed serial port (up to 115K baud) - ALL-GANG-08P2 / ALL-GANG-08 only
Load file, Read Master, Program, Verify, Auto, ID Check, Checksum, Blank Check, Erase, Secure, Protect/Unprotect, Edit, File Transfer, Function Configuration, Self Test.
* Operating Voltage: 90-245 VAC
* Power Consumption: 5V max 1A, 12V max 1.5A
Physical and Environmental Specifications:
* Dimensions: 245 mm x 220 mm x 55 mm
* Temperature: 0-40C (50 - 105F)
* Safety Standards: approved by TUV to meet CE requirements
* Any IBM compatible Pentium or up with a minimum 32MB memory.
* A parallel port for ALL-GANG-08P3
* A serial port or a parallel port for ALL-GANG-08P2
* A serial port for ALL-GANG-08
* 20 MB of free hard disk space.
* Windows 98, ME, 2000, XP operating system.
Heads: Heads are available for nearly every package type with 8 pins to over 100 pins for DIP, PLCC, QFP, TQFP, SOP, SOIC, TSOP, PGA, etc. At least one set of Heads is required for operation

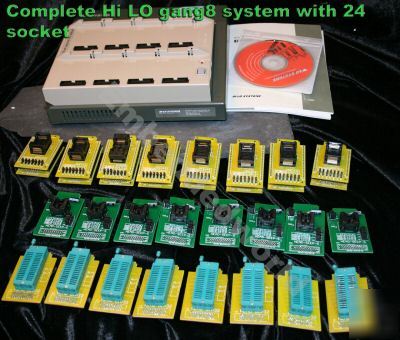

·1x CD-R(English manual and Software)
8 x ZIF 32 match socket module.
8 x TSOP48 Parallel FLASH MEMORY socket module
8 x SO8 Serial EPPROM socket module
For warranty parts and service:
Will send a replacement unit within warranty period upon received the defective unit
Spare parts are available upon providing parts number,
All purchased are final, will replace defective product only.
Return package must be in the original packaging, everything must be in new condition. Missing partÂ’s or anything in original contact will not qualify for any refund.
Defective item can be exchanged within 7 days of receipt.
Replacement and refunds will not be processed until the return item received.
