Teco MA7200-4050-N1

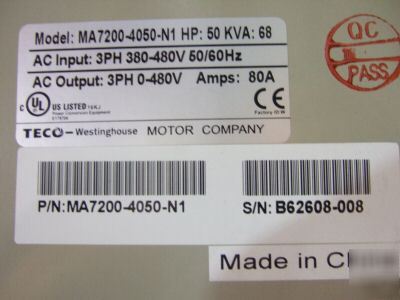

TECO MA7200 AC Drive, 50 HP, 460V 3 PH Input, 460V 3 PH Output, 80FLA, NEMA 1
380-460VAC 3 PH 50/60Hz (Voltage +10% to -15%, Frequency ±5%) Input
1 Analog Input (0-10V, 4-20mA, 0-20mA)
4 Programmable Multi-function Inputs with Positive or Negative Control Logic
4 Operation Control Inputs (FWD/REV)
2 Multi-function Output Relay
1 Multi-function Programmable Open Collector Output
RS-485 Port, MODBUS Protocol

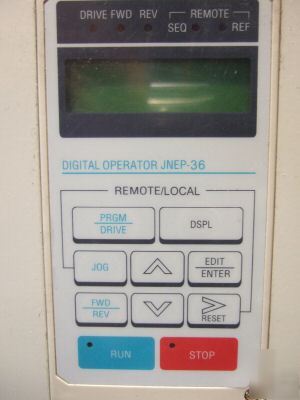

Graphical LCD Operator 2 lines by 20 character lighted Display With Copy Parameter Function
150% rated current for 1 minute
200% instantaneous over current
Electronic overload protection and stall prevention
Ground fault and short circuit protection
