New CW230 – 2 phase microstepping stepper motor driver

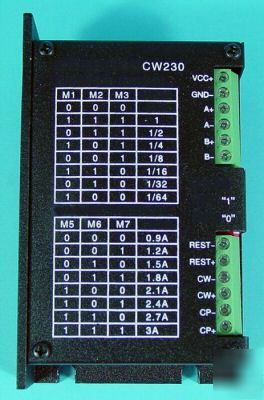

Stepper Motor Controller (CW230)
CW230 – 2 Phase Microstepping Stepper Motor Driver (Bi-polar and Unipolar Motors)
* DC Power input type: 24V-36VDC
* Output Current: 0.9A ~ 3.0A
* Dimensions: 115mm x 72mm x 32mm
* Working environment: 15 ~ 40°C, Humidity <90%
* Control: Opto-isolated step / direction
* MicroStep: 1 (200), 1/2 (400), 1/4 (800), 1/8 (1600), 1/16 (3200), 1/32 (6400), 1/64 (12800)
Compatible with these motors:
Compatible power supplies:
