Ssac 24VDC 10-500 min. solid statetimer w/ dpdt relay

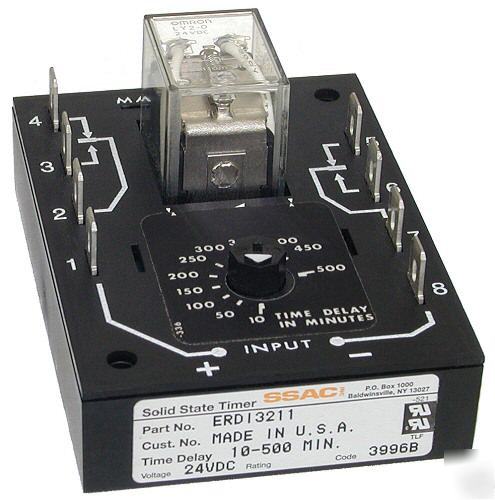

SSAC 24VDC Onboard Adjustable 10-500 Minute Solid State Timer With DPDT Relay
SSAC 24VDC Onboard Adjustable 10-500 Minute Solid State Timer With DPDT Relay
New SSAC solid state timer with dpdt relay. Onboard potentiometer 10-500 minute adjustable timing. When power is applied to the timer input leads the relay contacts close for the amount of time that is selected, then the contacts open and remain open until the process is repeated. This is brand new merchandise in prime condition. Made by SSAC Inc. Made In U.S.A.
Condition: New And In Prime Condition
Time Delay: 10-500 Minutes Onboard Adjustable
Timer Operating Voltage: 24 Volts DC
Relay Contact Ratings: 1/3HP 120VAC, 10 Amps 240VAC
Dimensions: 2-1/2" Wide x 3-1/2" Long x 1-5/8' High
1/4" Tab Terminal Wiring Connectors
