Sje signalmaster 15SGMPCNO float / control switch

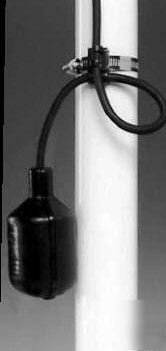

SJE SIGNALMASTER® Control Switch
Mechanically-activated, narrow-angle float switch designed to activate pump control panels and alarms.
This narrow-angle sensing device is used to accurately monitor liquid levels in:
The SJE SignalMaster® control switch is not sensitive to rotation.
Normally Open Model (high level)
The control switch turns on (closes) when the float tips slightly above horizontal
Passed NSF Standard 61 protocol by an approved Water Quality
Mechanically-activated, snap action contacts.
High impact, corrosion resistant, polypropylene float housing.
Control differential of 1.5 inches (4 cm) above or below horizontal.
UL Listed for use in water and sewage.
CABLE: flexible 18 gauge, 2 conductor
(UL, CSA) SJOW, water-resistant (CPE)
FLOAT: 2.74 inch diameter x 4.83 inch long
(7.0 x 12.3 cm) high impact, corrosion
resistant, polypropylene housing for use
in sewage and water up to 140oF (60oC)
MAXIMUM WATER DEPTH: 30 feet (9 meters),
ELECTRICAL: 5 amp, 125/250 VAC, 50/60 Hz
NOTE: This switch is not recommended for
