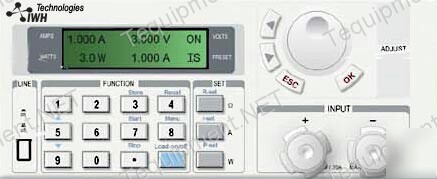

Iwh EL300W programmable electronic load 300W

IWH EL300W ELECTRONIC LOAD PROGRAMMABLE 300W
IWH EL300W ELECTRONIC LOAD PROGRAMMABLE 300W
* Get a FREE P3 International P4400 Kill A WATT Power Usage Monitor
* LCD display with backlight
* High resolution measurement
* Number keypad and rotary knob
* Over voltage / over current / over power
* Polarity reversion protection
* Can be connected in parallel
IWH EL300W electronic load is a single input programmable DC electronic load. It provides a convenient way to test batteries and DC power supplies. It offers constant current mode, constant resistance mode and constant power mode. The backlight LCD, numerical keypad and rotary knob make it much easier to use. Up to 10 steps program can be stored. Controlled by PC is also available. It is an essential instrument for design, test and manufacture of many suitable products.
Models, Options, & Accessories
Electronic Load Programmable 300W
Constant current, Constant Resistance or Constant power
4.00V to 35.999V ±(0.2% +30mV)
3.00A to 35.999 A ±(0.2% +3mA)
1mA (0 to 2.999A), 10mA (3.00A to 30A)
0.01W (0 to 99.99W), 0.1W (100 to 500W)
Over Voltage, Over Current, Over power, Over Heating and Reverse polarity
Monitor software CD. Active X modules for VC++, Visual basic, Delphi and Lab View upon request.
3.5 H x 8.3 W x 9.8 D (inches)
USB cable, Control software, USB adapter, Manual, AC line cord. Rack mounting brackets and hardware.
