New emerson 25 hp enery efficiant electric motor
25 hp ENERY EFFICIANT ELECTRIC MOTOR

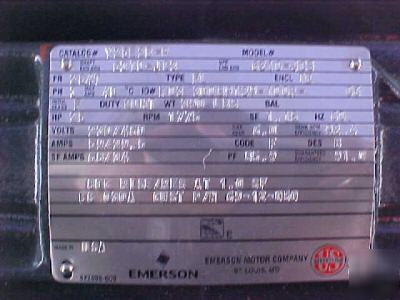

This is th e info on the plate; CAT#Y25E2B-P ,SHAFT END BRG 6310-CJ3, OPP EN BRG 6210-JC3, FR 284T, TYPE FL, ENCL TE, PH-3, MAX AMPS 40, ID#K03 30089129-100R-06, INSUL CLASS F, DUTY CONT, WT 390#, HP 25, RPM 1775, SF 1.15, HZ 60, VOLTS 230/460, NZA KVAR5 6.0, NEMA NOM EFFICIENCY 92.4, AMPS 59/29.5, CODE F, DES B, SF AMPS 68/34, PF 85.9, GUARANTEED EFFICIENCY 91.0
