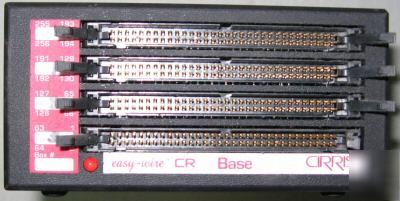

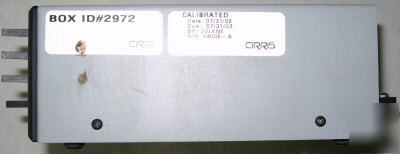

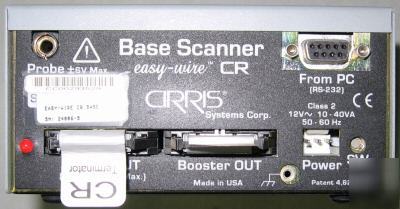

Cirris systems corp. easy-wire cr base scanner
Expandable from 256 to 32,000 points in 256-point increments.
Base Scanner: 256 points, one required per test system
Add-on Scanner: 256 points, no power required
Booster Scanner: 256 points, one required after each 7 add-on scanners
Voltage: 10 volts at < 6.5mA max
Resistance: 0.1 ohm to 100k ohms ±3% ±0.1 ohm, 100k ohm to 1M ohm ±5%
4 Wire (Kelvin Test) Resistance: .001 ohm to 75 ohms ±3% ±0.010 ohm.
Capacitance: 100pF to 1000«F ±10%
Components Tested: resistors, diodes, LEDS, capacitors
Distributed Testing: max distance between boxes, 20 feet; max distance total system, 200 feet
Test Rate: 256 points < 1 second
Mating Connectors: 64 point (2 row x 32 pins) 0.1" box header with latches
CPU Speed: 1.6 GHz or faster, OS: Windows 98SE, 2000, XP(recommended), Hard Drive: 5GB(min) 10G(recommended), RAM: 512M (min) 1G (recommended), Video Memory: 64 Meg RAM, USB Ports: 1 USB (min) 2 USB (recommended) (2.0 Compatible), CD-ROM Drive and Sound card are required. Serial Port: 1 port, Display resolution: 1024 X 768 or better.
Server Requirements: Operating System: Windows 2000 or 2003 Server. RAM: 1Gig. Disk Space: 10G (min).
Power (required for base unit and boosters only)
For wire/pin identification during guided assembly, testing, and editing.
5.4" x 6.6" x 2.6" (13.7 x 16.8 x 6.6 cm)
Build mode for testing during harness assembly
Networked Client/Server Database
