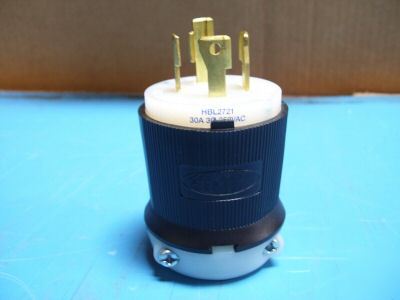

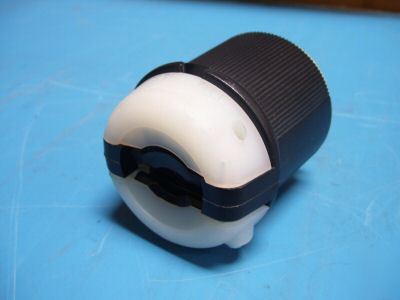

HBL2721 — hubbell electrical outlet connector
#10-32 Brass (white finish on neutral screw when used) Multi-drive
#10-32 Brass (green finish) Multi-drive
Steel, zinc plated Multi-drive
Steel, zinc plated Multi-drive
Permanently ink marked on body.
Certified for current interrupting at full rated current.
Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
HB or better per UL 94 or CSA 22.2 No. 0.6
Maximum Continuous 75 C Minimum -40 C (w/o impact)
For further information: http:// /wiring/section-b-datasheet.asp?FAM=Locking_Devices&PN=HBL2721
