Pacific sci R35JEAC-R2-ns-nv-00 r brushless servo motor
This listing is for a servo motor.
* Make: Pacific Scientific
* Model R35JEAC-R2-NS-NV-00
Here is a breakdown of the part #...
* R = Rare Earth Magnet (Samariam Cobalt)
* 3 = Motor Width (to nearest inch)
* 5 = Magnet Stack Length to Nearest Inch
* E = Shaft and Mounting - English
* A = Holding Brake Option - 24 VDC (Volts-DC) Break
* NV = Shaft Sealing - No Shaft Seal
* 00 = Sequence Number - Insert 00 if all parts are standard. Factory assigned if any parts are custom.
___________________________________________________________________________________
Here is some information from the manufacturer...
A broad selection of high performance brushless servomotors.
Choose from five frame sizes, continuous stall torques to 451 lb-in., and some combination of our extensive list of standard options to meet most application requirements for precision motion control.
However you measure performance, PacSci motors have the muscle. From high torque-to-inertia rare earth magnets to flux-focusing ferrite magnetics for matching high inertia loads. From low thermal resistance to maximum power ratings to anti-cog magnet designs for smooth low speed operation. Looking for high peak torque capability to move loads faster? R Series motors can handle high peak currents without demagnetization.
Our brushless servomotors are built for long, maintenance-free service life. They may look like other brushless servos, but there's more to these servos than meets the eye: extremely durable long-life bearing systems and rugged TENV, NEMA and IP65 housings for washdown requirements.
R Series servomotors offer the highest torque-to-inertia ratios in the industry. Engineered for the highest dynamic response available, these motors come in five frame sizes – both NEMA and metric mountings. The R Series covers a continuous rated torque range from 0.32 to 50 Nm.
For further information, please visit http:// /support/documents/pc800/svomtrs.pdf
___________________________________________________________________________________

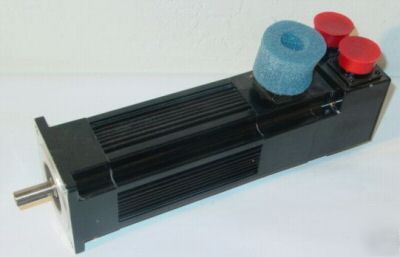

This set is BRAND NEW. Original packaging not included. Everything is guaranteed to be in proper, working order.
Check out the picture for more information. Feel free to ask any questions. WANT TO REACH ME BY PHONE? Feel free to call me (Trent) toll free @ (***) 972-1346.
