Ac tech 1/2 hp 1,3 phase variable speed drive #SF205Y

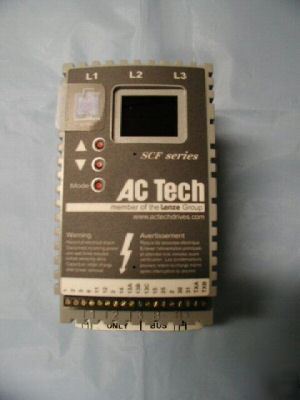

AC Tech 1/2 HP 1,3 Phase Variable Speed Drive #SF205Y
When your application requires more funtionality, the SCF has the additional I/O to meet your needs. 2-wire RS485 network communication using Modbus RTU protocol is standard. The SCF allows for either 2-wire or 3-wire start stop without programming! Additional I/O provides for two solid-state outputs and two analog outputs (speed and load). The SCF also has optional models that offer set-point (PI) control or control for high speed motors up to 1000Hz output frequency. This truly flexible sub-micro drive gives you the compact size you need for your panel layout while delivering on the functions and features your process demands. With 18 isolated terminals (5 logic inputs, 2 logic outputs, 2 analog inputs and 2 analog outputs plus RS485 Modbus Serial Communication), the SCF Series is ideal for motion control applications from the simple to the complex. Like all AC Tech sub-micro drives, the SCF Series drives employ the EPM memory technology for fast and efficient programming.
* 208 / 240 V, 1 or 3 Phase
* Dimensions: 5.75"H x 2.88"W x 3.94"D
* Digital Inputs (Active low, NPN)
* 2 Open Collector (NPN)
* 1 voltage (0-10VDC)
* 1 current (4-20mA)
* 2 Outputs (0-10 VDC, 2-10 VDC can be converted to 4-20mA) proportional to speed and load
* Serial Communications:
* 2-Wire RS-485 Modbus RTU protocol for programming, monitoring and controlling
* Speed Potentiometer Power Supply
* 12 VDC 50 mA Supply
* Programmable Features:
* Carrier Freq. 4 – 10 kHz
* Independent Accel and Decel Ramps
* 2nd Accel / decal ramp
* Auxiliary Ramp to Stop
* 240 Hz Maximum Output Freq.
* DC Injection Braking
* Floating Point Control (MOP)
* 0-10 VDC Analog Reference (scalable)
* 4-20 mA Analog Reference (scalable)
* 8 Programmable Preset Speeds
Modbus RTU Serial Speed Reference
List price is $231.00 at Industriallive.com!
