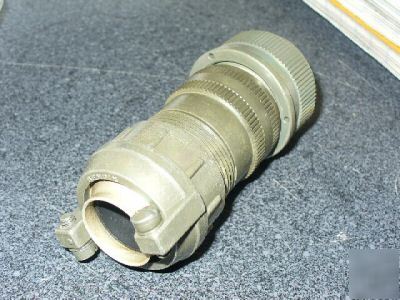

Connector,plug,electrical
BODY STYLE - 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF
BODY LENGTH - 3.278 INCHES MAXIMUM
OVERALL DIAMETER - 1.459 INCHES MINIMUM AND 1.479 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING RING
THREADED DEVICE TYPE - COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNEF
NOMINAL THREAD SIZE - 1.250 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD - CABLE CLAMP
CABLE ENTRANCE DIAMETER - 0.445 INCHES MINIMUM AND 0.750 INCHES MAXIMUM
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD - KEY, MULTIPLE KEY GROOVE
CONTACT POSITION ARRANGEMENT STYLE - ATAS NK-V17 SINGLE MATING END
INSERT MATERIAL - RUBBER SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION - MIL-R-3065 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
INCLUDED CONTACT QUANTITY - 17 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS - 22.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 500.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 700.0 SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
