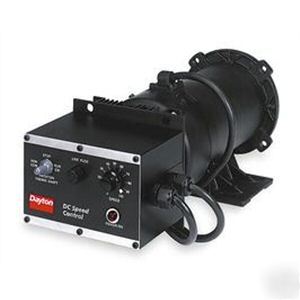

New dayton adjustable speed motor 1F798 in opened box
Permanent Magnet DC Totally Enclosed Fan Cooled Motor, HP 1, RPM 1725, Armature DC Voltage 90 VDC, NEMA Frame 56C, Mounting Face/Base, Service Factor 1.00, Bearings Ball, Full Load Amps@Nameplate Volts 10.6, Thermal Protection None
Shaft Dia. (In.)5/8 Insulation ClassF HP @ 900 RPM0.521 Thermal ProtectionNone IncludesSoft Start Acceleration, Transient and Surge Protection and Fused Control Protection NEMA/IEC Frame56C Max. Torque (In.-Lb.)36.5 HP1 Dimension L216.31 BearingsBall Cord3 Conductor Max. HP1 HP @ 500 RPM0.290 EnclosureTotally Enclosed Fan-Cooled ApplicationFor Packaging Equipment, Pumps, Fans, Blowers, Conveyors and Other Constant or Diminishing Torques Dimension C (In.)22.89 Full Load Amps10.0 Dimension A (In.)89.0 Shaft Length (In.)1 7/8 Dimension F (In.)3.0 Speed Range50 to 1 RotationCW/CCW Voltage90 MountingC-face with Removable Rigid Base Dimension D (In.)6.85 Ambient (C)40 Input Voltage115 Replacement Control Part No.106298518 HP @ 35 RPM0.020 Dimension E (In.)4.875 HP @ 1725 RPM1.000 Dimension L114.25 HP @ 85 RPM0.049 Dimension BA2.75 Nameplate RPM1750 Service Factor1.0 Dimension U0.625 Motor TypePermanent Magnet DC HP @ 50 RPM0.029 Dimension NW2.085 HP @ 125 RPM0.072 HP @ 1300 RPM0.753 Weight44.00
