Stepper motor 640 oz-in 8 wire dual bipolar or unipolar

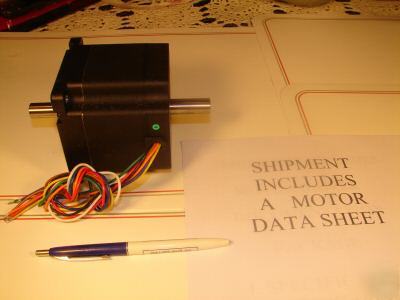

Brand New NEMA 34 640 oz-in stepper motor Includes documentation
Suitable for dirving mill tables with 5/8" to 3/4" drive screws
Dual Shaft Front shaft=1/2" x 1-3/16" with Flat. Back shaft= 1/2" x 1-3/16" with flat
Bipolar series Volts=.54, Amps=3.2, Ohms=1.42, Holding torque=4.5Nm. 0r 640 oz-in
Bipolar parallel Volts=2.30, Amps=6.4, Ohms=0.36 Holding torque= 4.5 Nm. or 640 oz-in
Unipolar Volts=3.2, Amps= 4.5, Ohms=0.71, Holding torque= 3.2 Nm or 455 oz-in
