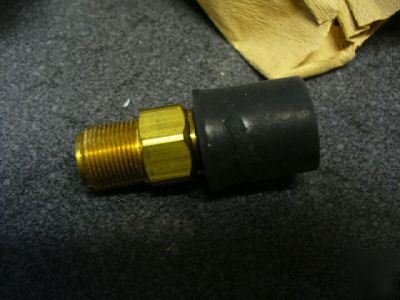

Connector,plug,electrical
BODY STYLE - 5D STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 1.770 INCHES NOMINAL
OVERALL DIAMETER - 0.690 INCHES NOMINAL
CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING RING
THREADED DEVICE TYPE - COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNEF
NOMINAL THREAD SIZE - 0.625 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD - COMPRESSION NUT
CABLE ENTRANCE DIAMETER - 0.385 INCHES NOMINAL
SHELL SURFACE TREATMENT - SILVER
CONTACT POSITION ARRANGEMENT STYLE - ABBC 18-420 SINGLE MATING END
INSERT MATERIAL - PLASTIC TETRAFLUOROETHYLENE SINGLE MATING END
INCLUDED CONTACT QUANTITY - 1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - COAXIAL SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS - 50.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL DOCUMENT AND CLASSIFICATION - QQ-C-530,COMP A FED STD SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-C-533,COMP HT FED STD SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT
III PRECIOUS MATERIAL AND WEIGHT - 0.005 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACE GOLD
