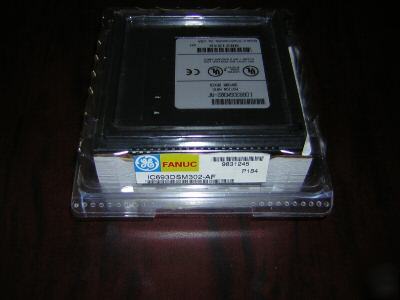

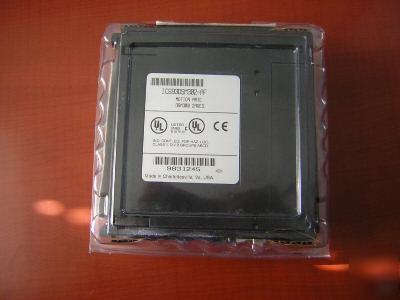

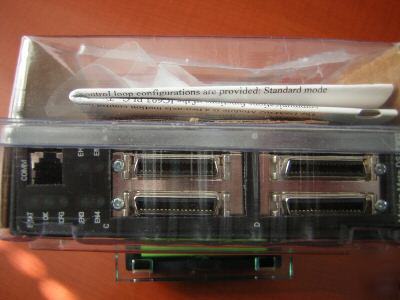

> Ge faunc series 90-30 IC693DSM302-af 2 axis motion mate
Ge faunc series 90-30 IC693DSM302-af 2 axis motion mate
Basic Features of the DSM302 - for use with GE 9030 PLC - GE Fanuc Alpha/Beta Servo systems
The DSM302 Module is a two-axis motion control module, which is highly integrated with the logic solving and
communications functions of the IC693 PLC. Two primary control loop configurations are provided: Standard mode
and Follower mode. The basic capabilities of the DSM302 are described below:
Digital Signal Processor (DSP) provides vector control of GE Fanuc AC servos
Digital Mode: 250 μSec (torque), 1 mSec (velocity), 2 mSec (position)
Analog Mode: 2 mSec (position)
Block processing time under 5 mSec
Velocity Feed Forward and Position Error Integrator to enhance tracking accuracy
High resolution of programming units:
Position: –8,388,608 . . . +8,388,607 User Units
Velocity: 1 . . . 8,388,607 User Units / sec
Acceleration: 1 . . . 134,217,727 User Units / sec / sec
