Nema single length stepper motor motion rotation 5VDC

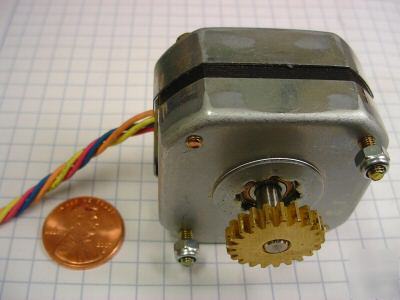

Single Length NEMA 17 Stepper Motor Speed & Torque for fine, and other motion.
This is a 1.8 degree per step, 200 steps per revolution, 3000 RPM stepper motor.
This has a maximum temperature of 90 degrees C at ambient temperature of 40 degrees C.
It is wired bipolar with two sets of coils (4 wires).
7.5 ohms, 5.3volts, and .7amps per winding.
Great for tight spaces but still with the NEMA 17 Frame of 43mm outside width,
Use a four ohm five watt resistor in series on each winding if you do not have a current limiting stepper motor driver.
Guaranteed not Dead on Arrival
