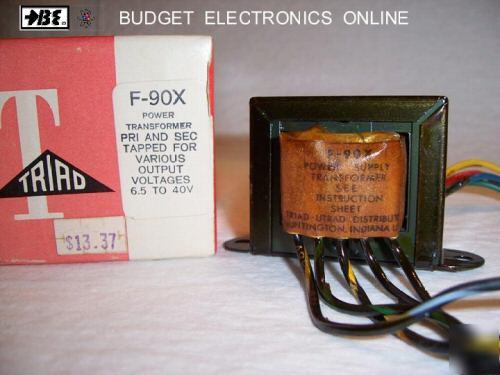

New triad f-90X rectifier power transformer ( in box)
( Primary And Secondary Tapped For Various Output Voltages From 6.5V to 40V )
TRIAD-UTRAD Brand Transformers Are A Division Of Magnetek, Inc.
This Triad Model F-90X Transformer Is A Brand New (never used) Unit Left Over In Our Retail Store Inventory From The Mid 1980's. It Still Has The Original Retail Price Sticker That Shows It Was Selling For $13.37 More Than 20 Years Ago.
SECONDARY: Tapped For Various Output Voltages from 6.5V to 40V @ 100mA DC
CONNECTIONS: Tinned Lead Wire ( 5 Primary Input, 4 Secondary Output )
DIMENSIONS: 1-5/8" High x 2-13/16" Wide x 1-5/8" Deep
MOUNTING: Horizontal Channel Mounting
SECONDARY AC VOLTAGES OBTAINABLE
40VCT, 38VCT, 34VCT, 32VCT, 30VCT, 28VCT,
20VCT, 19VCT, 17VCT, 16VCT, 15VCT, 14VCT
30V, 28.5V, 25.5V, 24V, 22.5V, 21V,
10V, 9.5V, 8.5V, 8V, 7.5V, 7V, 6.5V
SHOWING VARIOUS INPUT AND OUTPUT WIRING DIAGRAMS
