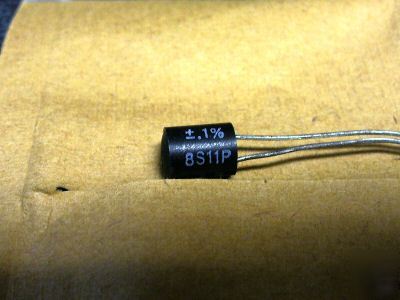

Resistor,fixed,wire wound,noninductive
ELECTRICAL RESISTANCE - 10.000 KILOHMS
RESISTANCE TOLERANCE IN PERCENT - -0.100 TO 0.100
POWER DISSIPATION RATING IN WATTS - 0.250 FREE AIR
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER - 125.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER - 145.0
TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS - -5.0 TO 5.0
TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS - -55.0 TO 125.0
INCLOSURE METHOD - ENCAPSULATED
STYLE DESIGNATOR - 48 AXIAL TERMINALS ONE END
BODY DIAMETER - 0.250 INCHES NOMINAL
BODY LENGTH - 0.344 INCHES NOMINAL
RELIABILITY INDICATOR - NOT ESTABLISHED
TERMINAL LENGTH - 0.500 INCHES MINIMUM
