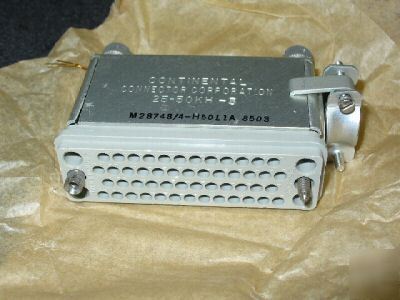

Style designator - 1A internal thread w/chain or rope
BODY STYLE - 17A HOOD, SIDE OPENING W/CLAMP
OVERALL LENGTH - 3.230 INCHES NOMINAL
OVERALL HEIGHT - 2.467 INCHES MAXIMUM
OVERALL WIDTH - 0.828 INCHES NOMINAL
CONNECTOR LOCKING METHOD - JACKSCREW-SOCKET
THREADED DEVICE TYPE - COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNC AND UNC
NOMINAL THREAD SIZE - 0.138 INCHES AND 0.138 INCHES
THREAD QUANTITY PER INCH - 32 AND 32
THREAD DIRECTION - RIGHT-HAND AND RIGHT-HAND
NOMINAL THREAD LENGTH - 0.320 INCHES AND 0.320 INCHES
CABLE ENTRANCE DIAMETER - 0.340 INCHES MINIMUM
SHELL TYPE - HOOD, SIDE OPENING
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416,TY 2,CL 1 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD - JACKSCREW
CONTACT POSITION ARRANGEMENT STYLE - CDAF 50 SINGLE MATING END
INSERT MATERIAL - PLASTIC DIALLYL PHTHALATE SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION - MIL-M-14,TYPE SDG-F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
INCLUDED CONTACT QUANTITY - 50 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - SHOCK PROOF AND VIBRATION RESISTANT
TEST DATA DOCUMENT - 81349-MIL-C-28748 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-C-28748/4 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL AND WEIGHT - 0.050 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILC28748-4
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M28748/4H50L1A
