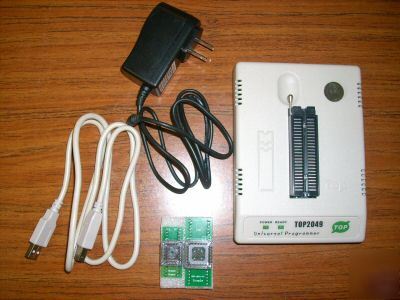

New TOP2049 eprom eeprom programmer
The TOP2049 programmer has very compact size, the power loss is quite low and is very reliable, specially design for micro-controller programming and many type of EPROMs. TOP2049 uses USB to communicate with notebook or desktop computer, it does not need the external power supply and the transmission speed is high. It is very easy to carry out with notebook computer.
* Using USB for power source, does not need the external power supply;
* Transmission speed 12MHz/s via USB.
* With current protection function, effectively protects the programmer and devices.
* USB load testing (0 to 10 levels);
* Device's connection inspection, inspect every pins' connection of the device;
* 48 pins imported self-lock sockets;
* Working with WINDOWS98SE/ME/2000/XP;
* plastic cabinet, small size and weight light;
* the programming speed has nothing to do with the computer's CPU speed;
* Can self-detecting the device's manufacturer's name and parts number.
28F320 writing+correction: 104 seconds
29LF320 writing+correction: 112 seconds
F89c58 writing+correction: 5 seconds
Support more than 3000+ devices from AMD, CATALYST, FUJITSU, HITAVHI, ST, MICROCHIP, NEC, NS,OKI, SONY, TI, TOSHIBA, WLSI, AMIC, ATMEL, INTEL and so on. But not recommanded used on 27 series.
Click here for Supported Device list: or go to URL:
http:// /gb/DeviceList/device2049.txt
1)Software: TopWin (for windows98se/2000/m3/xp);
5) One free simple PLCC32 adaptor;
