New cutler- hammer disconnect 30 amp 240 vac DH221NRK
YOUR BEST SOURCE FOR LOW COST CIRCUIT BREAKERS AND ELECTRICAL EQUIPMENT
Phone: 1.866.301.4255 Fax: 561.842.7674
__________________________________________________________________________________________________________________________

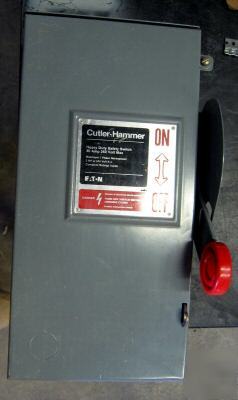

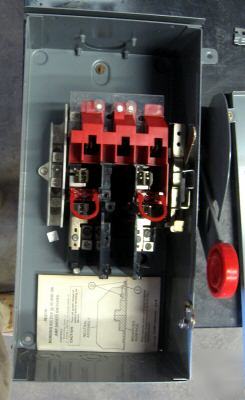

Cutler- Hammer DH221NRK 30 Amp/ 240 Vac Safety Disconnect Switch
2 pole- single phase- 3 hp max
Unit is in a 3R (RAINPROOF) enclosure.
Measurements are 16.25"x 8"x 5.5"
Item has never been used but has a couple scratches to the paint.
Fuses are not included but are available.
Manufacturer Part Number: DH221NRK
Manufacturer: Cutler-Hammer or Westinghouse

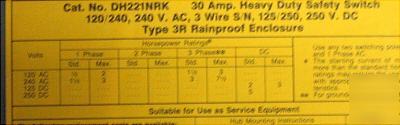

Power Rating: 1-1/2 HP AT 240 VAC 1 PHASE, 3 HP AT 240 VAC 3 PHASE (STANDARD FUSE); 3 HP AT 240 VAC 1 PHASE, 7 1/2 HP AT 240 VAC 3 PHASE (TIME DELAY FUSE); 5 HP AT 250 VDC
Fuse Type: CARTRIDGE, CLASS H, TIME DELAY
Additional Information: APPLICABLE STANDARD NEMA KS-1; GROUNDED B PHASE SYSTEM APPLICATION
Classification: Single Throw Safety/Disconnect Switch
HEAVY DUTY SAFETY; 240 V AC VOLTAGE; 250 V DC VOLTAGE; 30 AMPERE; POWER RATING 1-1/2 HP AT 240 VAC 1 PHASE, 3 HP AT 240 VAC 3 PHASE (STANDARD FUSE); 3 HP AT 240 VAC 1 PHASE, 7 1/2 HP AT 240 VAC 3 PHASE (TIME DELAY FUSE); 5 HP AT 250 VDC; 2 POLE; 3 WIRE; C
Edison Electrical Surplus Inc. provides a 1 YR Replacement Warranty on all items
