Frequency measurement via clamp head or leads

Perfect for motor and ASD troubleshooting

TightSight bottom display

Voltage-presence warning on all functions

Tapered jaws with hook tip

Selectable auto power off

Includes leads, alligator clip and case

Displays 3-3/4 digit LCD with 4000 counts for both displays

Backlight Green illumination with auto-off after 4.5 minutes

Analog Bargraph 41 segment LCD with measurements of 20 times per second

Polarity Automatic, positive implied, negative (-) polarity indication.

Overrange "OL" indication is displayed.

Measure Rate Samples 2 times per second, nominal.

Auto Power Off Approximately after 30 minutes of non-use.

Battery Life 200 hours continuous with Alkaline (61-766)

Low Battery Indication The " " is displayed when battery voltage drops below operating level.

Power Supply (1) 9V battery (NEDA 1604, JIS 006P, IEC 6F22)

Includes an isolated battery compartment.

Accuracy Stated accuracy at 23°C ±5°C, <75% R.H
.
Temperature 0.1 x (specified accuracy) per °C,

Coefficient (0°C to 18°C, 28°C to 50°C).

Altitude 6561.7 ft. (2000m)

Operating Environment 32°F to 122°F (0°C to 50°C) at < 70% R.H.

Storage Environment -4°F to 140°F (-20°C to 60°C) at < 80% R.H.
with battery removed from meter

Jaw Opening Accepts a 1.42" (36mm) conductor

Dimensions 8.7”H x 3.1”W x 1.8”D (222mmH x 80mmW x 45.5mmD)

Weight 12.3 oz (350g) including battery

Accessories included Carrying Case

Test Leads with alligator clip

(1) 9V battery, operating instructions
.
Safety Complies with EN 61010-1, EN 61010-2-032, UL 61010-1,

IEC 61010-2-032, IEC61010-031 specifications, Cat IV-600V/Cat III-1000V.
Double Insulation Instrument has been evaluated and complies with insulation category II

(overvoltage category II). Pollution degree 2 in accordance with IEC-644.

AC Converter 61-764 model is averaging sensing, rms calibrated,

61-766, 61-768 models are true rms sensing.

Accuracy Accuracy is specified as +/-(a percentage of the reading + a fixed amount)

at 23°C±5°C (73.4°F ± 9°F), less than 75% relative humidity.

Temperature Coefficient 0.1 times the applicable accuracy specification

per degree C from 0°C to 18°C and 28°C to 50°C (32°F to 64°F and 82°F to 122°F)

All products to be returned must be in original condition.

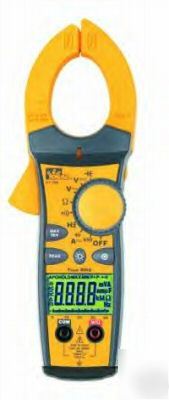

The picture is for display purposes only and may vary slightly from actual product.
