Hp 779D -20DB directional coupler power measurement
* Frequency range: 1.7 to 12.4 GHz
* Nominal coupling: 20 dB ±0.75 dB
* Directivity: >30 dB for 1.7 to 4 GHz, >26 dB for 4 to 12.4 GHz
* Power Rating Average, Peak: 50 W, 250 W
* Connectors: Primary Line 1-N(m), 1-N(f); Auxiliary Arm N(f)
* Weight: 2 lb; Size: 114.3 mm (4.5 in)H x 25.4 mm (1.0 in)W x 196.9 mm (7.75 in)L

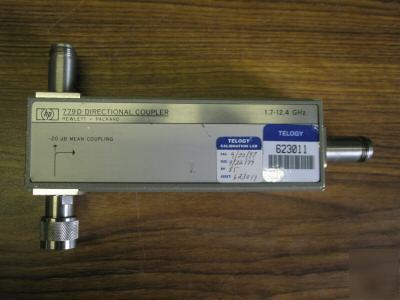

Agilent 779DClick Here to Magnify Image
The HP 779D is a directional coupler designed for swept measurements in the 1.7 to 12.4 GHz range. Its high directivity and mean coupling accuracy of ±0.5 dB makes the 779D ideal for reflectometer applications. The auxiliary arms track very closely, making this coupler particularly useful for reflectometers driven by sweep oscillators.
We will be adding items daily, so please check our “View seller’s Items†often!
Please feel free to ask questions!
