Old craftsman tools 1 hp motor 3600 rpm 1/60/115/230V

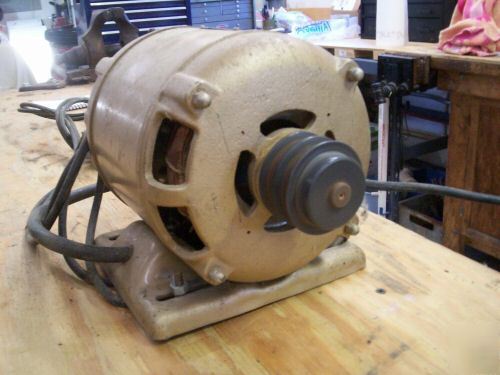

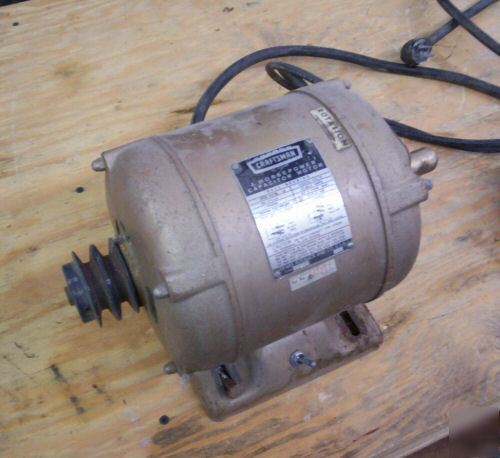

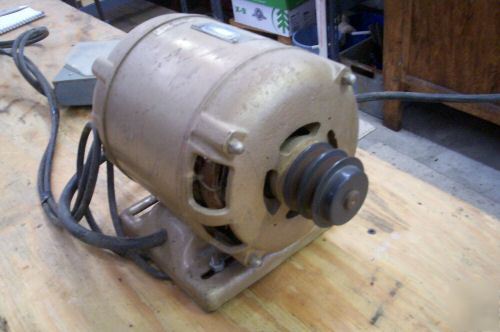

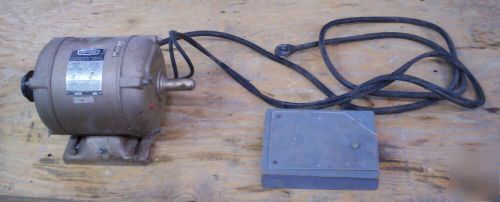

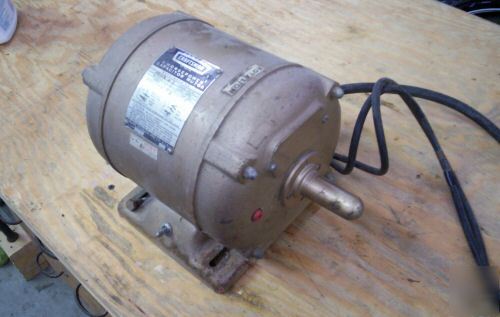

Old Craftsman Electric Motor. Heavy Duty Frame with cast iron ends. Rated 1 HP capacitor motor, ball bearings, 3450 full load RPM, 115 volt / 12.4 amps, or can be wired for 230 volt / 6.2 amps. Single phase, 60 cycle. 40 degree C temperature rise. Craftsman Sears Robuck Model Number 113.19092. Motor has a built-in thermal protection thermostat switch at one end (note the red button at the end), which can be manually reset. The base of the motor has the actual on-off switch. The motor has drive shafts on either side, I believe 5/8" diameter, but I cannot guarantee as its been a while since I've measured them. One of the shafts has a factory shield bolted to it for protection, the other side has a twin V-belt steel pulley. With the twin drives, this motor is very adaptable to all sorts of applications.
