New bea LO21 lockout module 10LO21K relay keane monroe

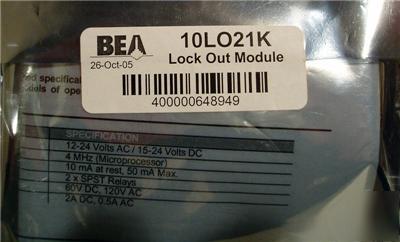

One new, static-bag sealed BEA 10LO21K Lockout Module for pedestrian automatic doors. The LO21 retails for $244.
* Used to lock out header-mounted safety sensors while the door is in closing cycle.
* Recognizes the position of the door by reading the motor voltage.
* Communicates the position of the door to the door-mounted safety sensor.
LO21 Technical Specifications:
* Power Supply: 12-24 Volts AC / 15-24 Volts DC
* Operating Frequency: 4 MHz (Microprocessor)
* Power Consumption: 10 mA at rest, 50 mA Max.
* Max. Voltage - Relay Contact: 60V DC, 120V AC
* Max. Current - Relay Contacts (both): 2A DC, 0.5A AC
Complete documentation, wiring diagrams and related product information can be found at the BEA Sensors web site:
http:// /BEAINC/products/pedestrian/Modules/LO21.php?prd=15
