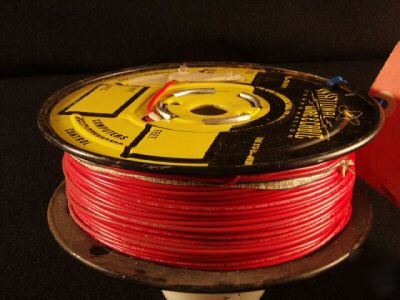

Wire 18 awg appliance wire style 1569 500' roll red
18 AWG Electronic appliance wire, National Wire and Cable Brand.
Wires recognized by the Underwriters’ Laboratories, Inc for operation in an air or an oil environment, U.L. File #E35793.U.L. AWM Style 1569
• U/L Recognized Appliance Wiring Material
• 1/64†Vinyl Insulation UL Rated
• 300 Volt Appliance 600 Volt Electronic
Meets MIL-W-16878/2 unless noted.Also meets UL Style 1007, 80ºC 300V
Agency Voltage Rating: 300 V for appliance use, 600 V peak, for electronic use.
Factory Spark-Test Voltage: 5000 VAC. 100% of all wire is tested at this voltage.
Insulation Breakdown Voltage: > 7000 volts, peak.
IR: Insulation Resistance, wet: > 2000 megohm/100 mtr, metal to water bath at +20ºC
Nominal Dielectric Constant value: 4
Flame Properties: Self extinguishing. Meets UL VW-1
Fungus: Fungus resistantResistant
NOM. DIAM. OF STRANDED CONDUCTOR
MAX RESISTANCE (dc at 20º C) ? /per)
