Temperature alert,winland electronic signal ta-2HL 50MA
This Temperature Alert has been used for 4 months until we moved the business out. Please see the specification bellow.

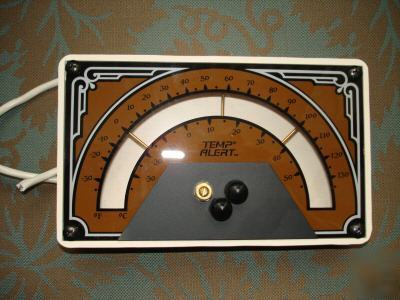

Mechanical Temp Alert (TA-2HL)
The economical TA-2HL Mechanical Temp Alert adds reliable and economical temperature protection to your residential or commercial security system. The design can be used anywhere the monitoring of high and low temperature limits is critical. The unit is a special version, which will enable you to separately zone out high and low temperature alarm signals. Simply select an acceptable temperature range by setting the adjustable high and low limits from -30 to +130F (-34 to +54C). If temperatures in the monitored area rise above or fall below the set limits, the temperature indicator contacts one of the preset limit arms providing a dry contact closure, which can like a switch be used to turn on an existing alarm panel, telephone communicator, or wireless alarm system.
The 1" profile and custom graphics which make it ideal for placement in residential homes, businesses, or other settings where a highly professional appearance is important. In addition, the unit's 15' length of signal cable exits through the back panel so that no wires are visible when the installation is complete. By wiring several Temp Alerts in parallel, it is possible to monitor temperatures in an entire complex.
Important: Install a Temp Alert on every level of your home or business to adequately protect against freezing. Do not use for freezer or cooler monitoring. Instead use a Digital Temp Alert unit with a remote sensor probe.
* Residential or Vacation Homes
* Greenhouses & Animal Buildings
* Buildings with Controlled Climates
* Requires no power for operation
* Independently adjustable high and low set points
* Easily to read temp indicator in F or C
* Provides (2) dry contact closure outputs 1-high alarm, 1-low alarm
* Easy surface mount installation
* One year parts and labor; subject to conditions of limited warranty.
* Low Limit Adjust Range: -30 to +90 F (-34 to +32 C)
* High Limit Adjust Range *: -10 to +130 F (-12 to +54 C)
* Minimum Span (Rec. dist. between high & low set points.): 10 F (5.6 C)
* Temp/RH Accuracy of Probes: +/-3 F (+/-1.7 C)
* Temp Response Time: TC= 14 Minutes
* Temp Sensing Element: Bi-metallic coil
* Outputs (not for high voltage use): Gold Plated N/O dry contacts
* Contact Output Rating: 12VDC @ 50mA (not for direct high voltage switching)
* Dimensions: 6.25" x 3.75" x 1" (15.9 cm x 9.5 cm x 2.5 cm)
* Mounting: 2 Key slots in rear panel
