Hactec loop calibrator model 05

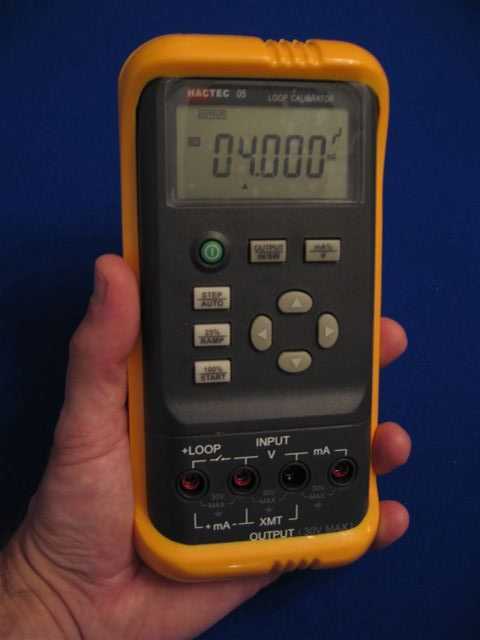

Hac-Tec 4-20 mA Loop Calibrator
Volt & Milliamp Calibrator to troubleshoot process loops
The Hac-Tec Volt/mA Calibrator delivers outstanding performance, durability and reliability. Offered with a rugged rubber holster, the calibrator is compact, lightweight and easy to carry. With an push button interface the Hac-Tec 05 is easy to use. It is EMI tolerant, dust/splash resistant and features a removable battery door for quick battery changes.
* Measure loop current (0-20 mA, 4-20 mA) signals with very high accuracy of 0.02% and .001 mA resolution
* Measure voltage output process signals from PLCs, transmitters
* Source or simulate 24 mA loop current
* 24V loop supply with simultaneous current measurement
* Enhanced voltage and current measure and source accuracy
* Improved battery life ( 20 hours / 9 volt battery)
* Compact case with protective holster
* Three auto-ramp output functions
* Configurable zero and span settings
* 10 Amp alligator clips, CE
